We manufacture various versions of our digital receivers RDR “Reuter Digital Receiver” as well as gadgets and antennas.

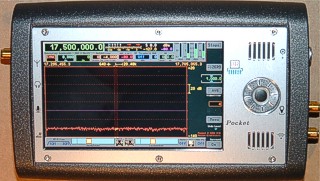

Reuter Pocket

Pocket-2

The RDR Pocket is a small hand-held receiver for mobile operation.  It contains the complete RDR DSP with up to 10 Hz  spectrum resolution. The high-definition 4,3” display (800 x 480) is suitable for direct operation in daylight. A lithium-ion battery with up to 4 hours operating time is permanently installed. Deliverable with VHF / 2 m / DAB+. VHF module can additionally be equipped with 100 kHz - 156 MHz / 2.5 mW broadband exciter.

Go to product page

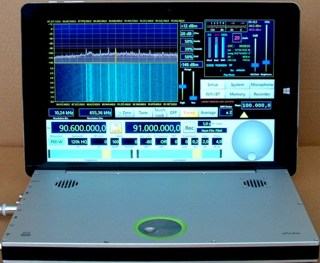

Reuter sPocket

sPocket2

The "Super Pocket" utilizes an independent, magnetically dockable 10" display (Tablet) with Full HD resolution. Its flat full metal housing allows convenient transportation and stable handling. The reception characteristics correspond to those of the Pocket with  additional features of the RDR54 / 55 (up to 2.5 Hz spectral resolution, optional quad 16 bit ADC, broadband exciter with up to +20 dBm output,  advanced FM displays, ...).

          Go to product page

RDR52

RDR52al2

The RDR52 combines the essential properties of the RDR51 Pocket with the advantages of a desktop device. Efficient stereo loudspeakers and large rotary knobs as well as a sturdy but lightweight housing allow convenient station operation and use as a mobile device.

Equipped with the latest version of our special spectrum-based signal processing and two powerful 16-bit ADCs, the RDR52 offers high reception quality. Two slots enable expansions for FM / 2m / DAB reception and transmission from 100 kHz to 156 Mhz.

          Go to product page

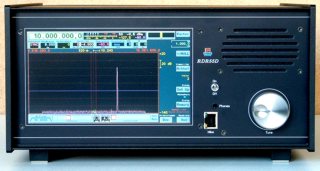

RDR55

RDR55D_V1

The RDR55 is a modular receiver / transceiver with 7" display including touch operation. It can be adapted to many operating conditions thanks to its exchangeable modules. The full metal aluminum housing enables highest reception quality through extensive shielding measures. A wide-range power supply is installed.

Go to product page

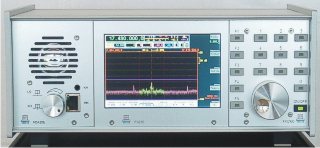

RDR54

RDR54D_1

The RDR54 is a compact, modularly designed receiver with a 5” (13 cm) TFT display and keyboard as well as a magnetic rotary encoder with “turn-push-control”. It can be equipped with interchangeable modules to various extension levels, even later on.

  No longer available!                   Go to product page

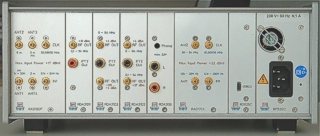

Modules for the RDR54/55

RDR54_Full_1

The deployed modules define the functionality of the devices RDR54 and RDR55. Some modules like the display or the analog to digital converter are always necessary, whereas others can be used optionally.

Go to modules

RDR160

RDR160B_1

The RDR160 is a Hi-Fi VHF tuner with fully digitized signal processing. It is equipped with a quad ADC module, which is also available for receiving the LMK ranges in AM. A high-grade 24 bit stereo DAC is responsible for the audio output. With 16.9 inch (43 cm) width, the RDR 160 is a perfect match to common Hi-Fi equipment.

Go to product page (german)

RLA4

RLA3A_1

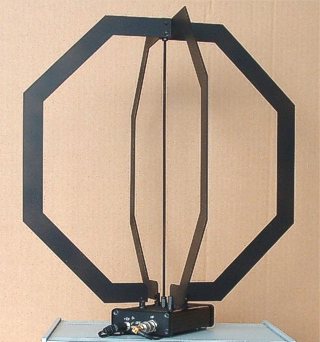

The  broadband magnetic loop receiving antenna RLA4 is characterized by high signal levels and low intrinsic noise despite its small dimensions. It has 2 crossed independent receiving loops with their own amplifiers, allowing fast electronic direction control.

Go to product page

RFA1

RFA1_F1

An active ferrite antenna with electronic tuning and high selectivity thanks to the Q factor. Small, light and can be operated on any receiver with a standard 50 Ohm connection. Can also be remote controlled.

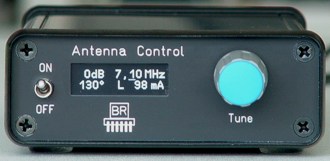

RAP1

RAP1B_1

The active preselector RAP1 contains a low-pass filter 0 - 0.5 MHz and 3 bandpass filters, each with 2 circuits, for the frequency range 0.5 - 30 MHz. In addition, active antennas can be remotely powered and the RLA4 antennas can be remotely controlled. An integrated microcontroller allows single-button operation and, with the aid of adjustable gain, automatic correction of the frequency-dependent filter attenuations. The RAP1 can be remotely controlled from a remote control unit or receiver RDR5x via the RF cable, as well as from IT devices via a WiFi connection.

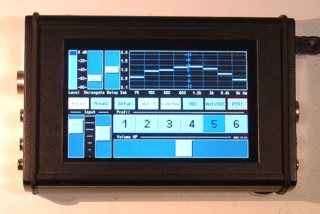

RME1

RME1_1

The microphone equalizer RME1 is an audio device for editing NF signals. It allows the attachment of microphones and transceivers or common signal sources / -loads with diverse plug connectors (Jack, 8-pin round, RJ-45). The fully digitized signal processing and operation with 5” (13 cm) touch display includes ALC, compressor, equalizer and various more.

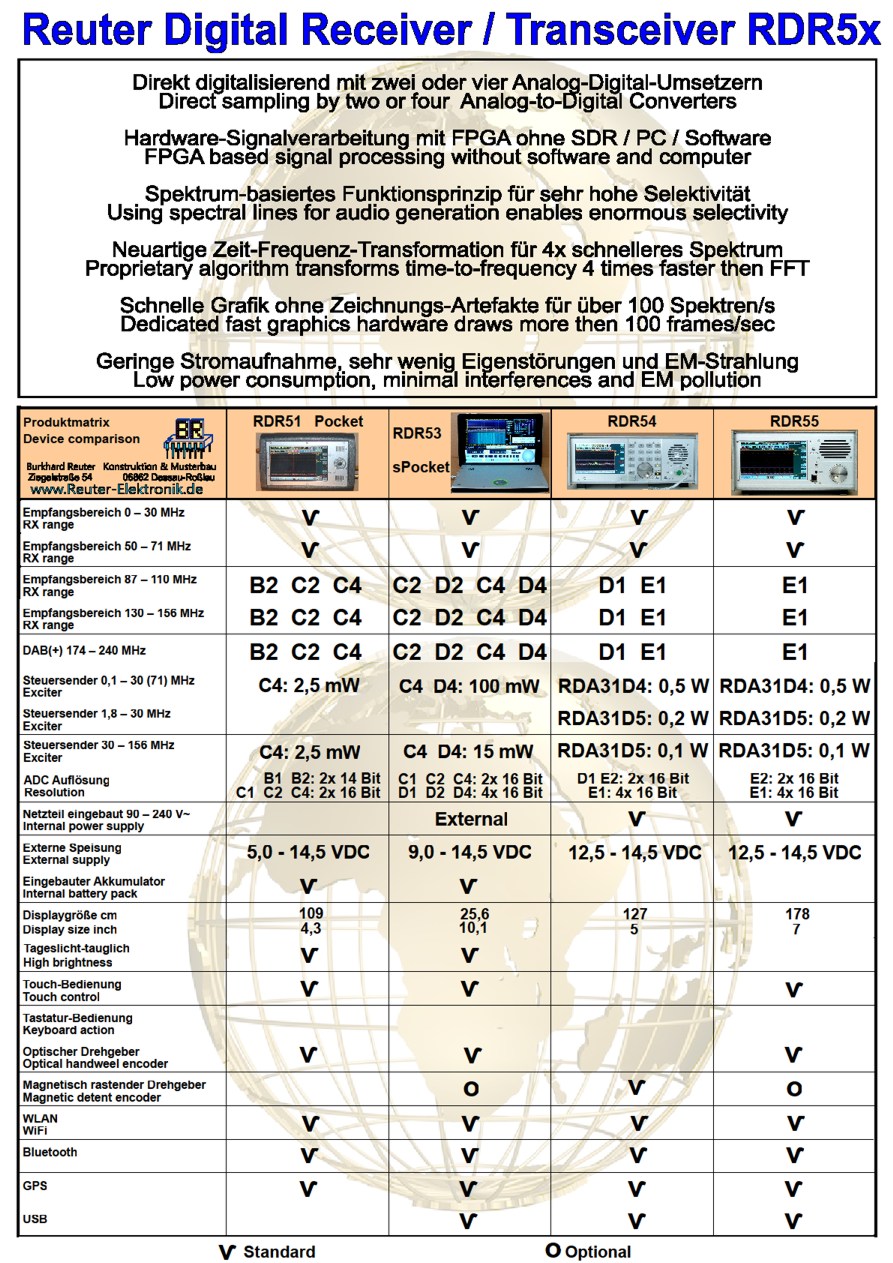

RDR_Übersicht
