The RLA is a broadband, non-tuned receiving antenna for the LW to SW range based on the magnet loop principle. It possesses 2 loops that are arranged at an 90 angle to each other with switching / rotating option of the receiving direction.

  • General Information

    The antenna loops of the RLA are made of specific multilayered circuit board material with protective coating. The utilization of the parallel connected copper surfaces of the material results in  a very low inductance. In conjunction with the highly sensitive and low-resistance amplifier inputs, a high cutoff frequency is achieved.

    The antenna loops are relatively small but achieve good receiving levels in conjunction with the low-noise amplifiers. Thus, the small and light antenna can be used flexibly. The low-resistance magnet loop principle and the direct and centered grounding of the loops (completely symmetrical structure of mechanics and electronics) result in a very low noise sensitivity.

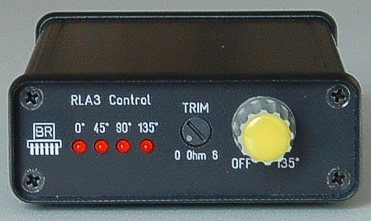

    On the RLA3A switching the loops and thus the receiving direction is done in 90 steps directly at the antenna. A control unit for the antenna is available which enables remote supply through the HF cable and the switching in 45 steps (both loops simultaneously active).

    The RLA4A features fine tuning of the direction even between the 45 angles. This enables using the notch to achieve a high degree of suppression of unwanted signals. Variant 4B further enhances broadband noise suppression by using multilayer loops with grounded copper layers at the outer layers.

    For the setup of own designs, the amplifier board of the RLA3A is also separately available, currently in version RLA4D with very low-noise and IM resistant electronics.

    The RLA4 antenna is available with 14.17 in (36 cm) loops mostly ex-stock.

    RLA3A_2
